FilterFab F-Series Filters
Remove Dry Particulates from Gas Lines
All gas lines have dry contaminants (such as pipe scale, dirt, and rust) that will damage or even destroy your downstream equipment. Using a Filterfab F-Series Dry Filter will remove all forms of dry contamination, lengthening the life of your equipment and saving thousands of dollars in maintenance costs.
F-Series Dry Filters have:
- 4 different closure styles. FilterFab has designed its lid closures to make filter element changeout as easy and as fast as possible. 2" thru 6" line sizes in 285 psi ratings use a quick-opening swing-bolt lid or blind flange, while larger and higher pressure filters incorporate a blind flange with lifting lug or a lifting davit. Optional threaded high-pressure closures are also available.
- 3 pressures (MAOP). Available in 285, 740 and 1480 psi.
- 7 standard line sizes. Choose from 2" to 12". Custom sizes to 24" available.
- A wide range of flowrates. 5,000 to 25,000,000 scfh.
- 2 types of filter cartridges. Our standard replaceable filter cartridge uses polyester-felted media or polyester/cellulose media, both of which remove 99.9% of all solid particles 10-microns and larger. This is well beyond the recommendations of all major manufacturers of meters and regulators. Our standard filter size is 10 microns, but filters with retention ratings as low as 0.3 micron to as high as 75 microns are available.
Call FilterFab's Sales Department for pricing and a representative in your area. Many model sizes are kept in stock for quick delivery.
FILTERS ALWAYS PAY FOR THEMSELVES
-
Build a FilterFab F-Series Part Number
To choose the correct FilterFab model for your application, start by building a part number. You will need to know line size and pressure rating. See this example:
-
F-Series Filter Flowrate Information
Now check the model number you have determined above against the flowchart below to make sure that your choice will handle the flowrate of your application.
FLOWRATE in SCFH for F-Series Filters
Line Pressure in PSI
Model Number 1/4 5 25 50 100 150 250 500 750 1000 1200 1400 F2M 8400 11700 20000 26000 34000 41000 - - - - - - F2 25500 29000 57000 72000 95000 114M 260M 355M 433M 575M 685M 780M F3 50000 65000 122M 144M 220M 265M 570M 820M 950M 1.2MM 1.4MM 1.5MM F4 83000 120M 210M 250M 380M 470M 970M 1.3MM 1.9MM 2.5MM 3.0MM 3.3MM F6 240M 270M 500M 555M 910M 1.1MM 2.0MM 2.7MM 3.1MM 4.0MM 5.0MM 5.5MM F8 410M 490M 770M 1.0MM 1.6MM 2.0MM 3.5MM 5.0MM 6.0MM 8.0MM 10MM 11MM F10 550M 910M 1.1MM 1.9MM 2.6MM 3.0MM 6.0MM 7.5MM 9.0MM 12MM 14MM 17MM F12 865M 1.2MM 2.2MM 2.5MM 4.0MM 4.8MM 8.8MM 11MM 14MM 18MM 22MM 25MM swipe left to see the whole table.
Choose a Style
Now look at the styles below the flowrate chart to see the standard body and closure style of your filter. Choose whether to print a hard copy in either Adobe .pdf or AutoCAD .dwg format. To download a .pdf or dwg file, right-click on a link and select "Save Target As..."
Blind Flange with Lifting Lug
| PSI | Line Size | Model Number | Dimensions (A x B x F) |
Filter Element | Downloads |
|---|---|---|---|---|---|
| 740 | 2" | F2-740F | 26" x 19" x 15" | 2385K140 | PDF | DWG |
| 740 | 3" | F3-740F | 32" x 25" x 18" | 2394K5 | PDF | DWG |
| 740 | 4" | F4-740F | 38" x 30" x 20" | 2022K5 | PDF | DWG |
| 1480 | 2" | F2-1480F | 27" x 20" x 15" | 2385K140 | PDF | DWG |
| 1480 | 3" | F3-1480F | 33" x 26" x 18" | 2394K5 | PDF | DWG |
| 1480 | 4" | F4-1480F | 38" x 30" x 20" | 2022K5 | PDF | DWG |
Blind Flange With Lifting Davit
| PSI | Line Size | Model Number | Dimensions A x B x F |
Filter Element | Downloads |
|---|---|---|---|---|---|
| 285 | 8" | F8-285F | 47" x 33" x 28" | 2054K5 | PDF DWG |
| 285 | 10" | F10-285F | 60" x 44" x 32" | (2)2070K5 | PDF DWG |
| 285 | 12" | F12-285F | 66" x 47" x 40" | (2)2083K5 | PDF DWG |

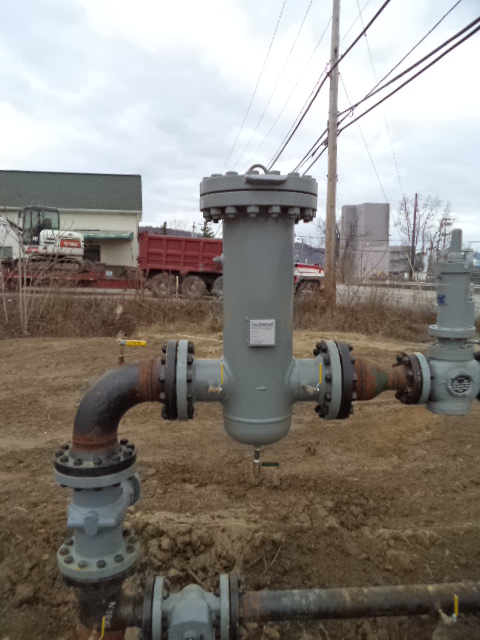

| 740 | 6" | F6-740F | 40" x 29" x 24" | 2035K5 | PDF DWG |
| 740 | 8" | F8-740F | 48" x 34" x 28" | 2054K5 | PDF DWG |
| 740 | 10" | F10-740F | 61" x 45" x 32" | (2)2070K5 | PDF DWG |
| 740 | 12" | F12-740F | 67" x 48" x 40" | (2)2083K5 | PDF DWG |
| 1480 | 6" | F6-1480F | 41" x 29" x 24" | 2035K5 | PDF DWG |
| 1480 | 8" | F8-1480F | 49" x 25" x 28" | 2055K5 | PDF DWG |
Blind Flange With Hydraulic Davit
-
We Love Special Designs!
Are there any special design changes we can make to the standard unit you have chosen to help you fit into a tight space, remove a particularly stubborn contaminant, resist a high temperature, or simply make your job easier? Email a sketch of your requirement as an Adobe PDF or an AutoCAD DWG file. We will contact you with our suggestions. FilterFab started in business in 1983 by building special designs, so you can count on us to find a solution to your unique problem.
-
F2M "Miniature" Filter
Our Model F2M "Miniature" filter was designed to be used in lower-flow applications where a strainer is just too coarse but your budget does not allow for our standard size F2 housing. Shown here with a full-size F2 the F2M is available with flanged inlet/outlet or either female or male pipe connections. This housing is an excellent choice for tight spaces and small meter runs in any mounting orientation.
-
Need More Information, or Want to Place an Order?
Call 724-643-4000 or email a FilterFab Sales Representative to find out more about pricing, delivery lead time, optional equipment, or special design requirements. You may also want to visit our Contact Us page or send us a Request for Quotation.
-
ASME Information
Housings are designed and built to ASME Boiler & Pressure Vessel Code, Section VIII, Division 1 specifications by Section IX certified welders but not U-Code stamped without an extra charge.
