Remove dirt, rust, pipe scale, iron oxide,
and other dry particulates.
Remove dry particulates plus all water and oil
in slug, droplet, and mist form.

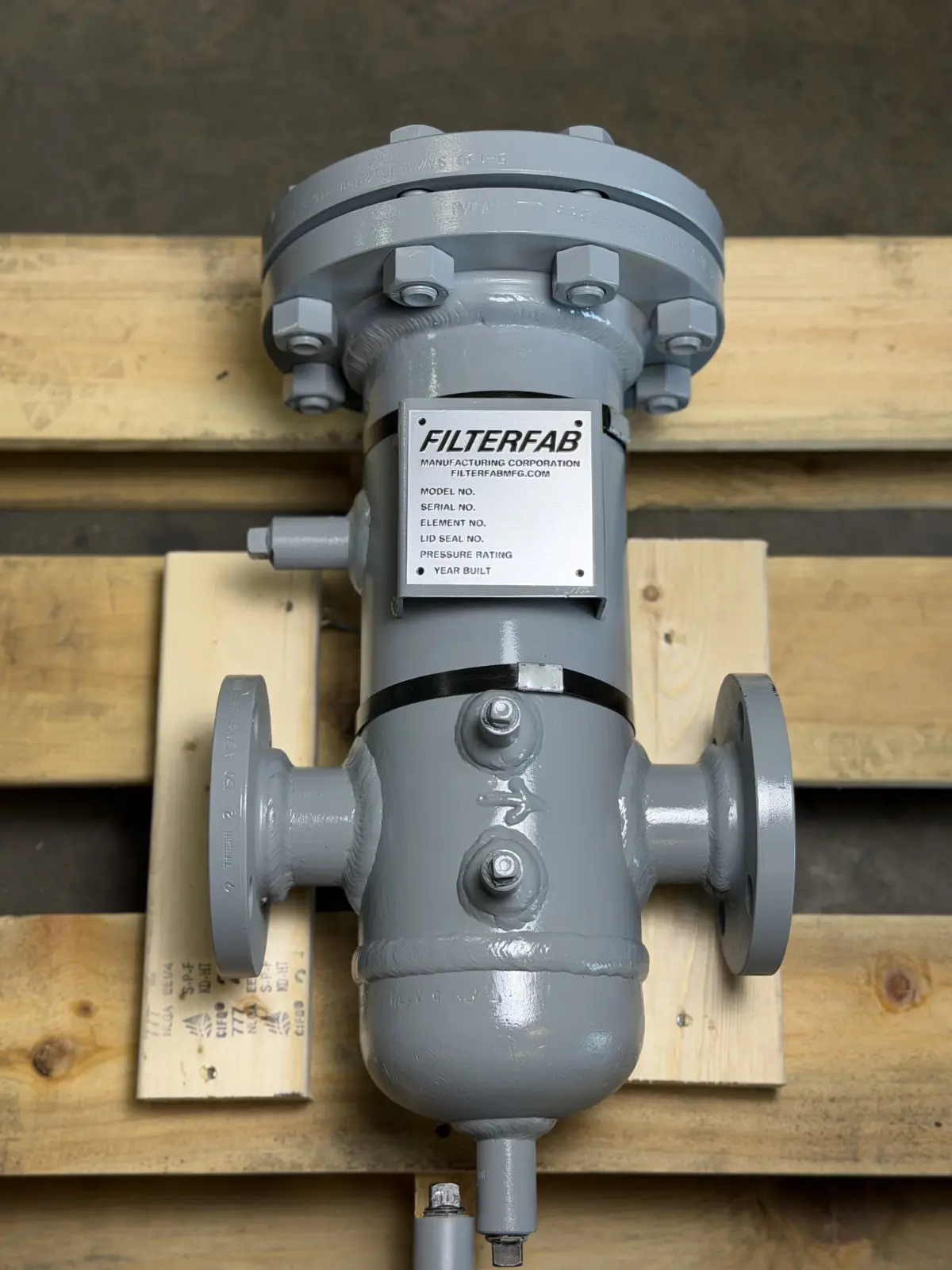

FilterFab natural gas filters remove dirt, rust, pipe scale, iron oxide dust, and all other particulates from your natural gas lines before they can destroy turbine meters, grind away the tight tolerances of rotary meters, jam regulators, and wear valve seats.
Why You Should Use FilterFab F-Series Natural Gas Filters

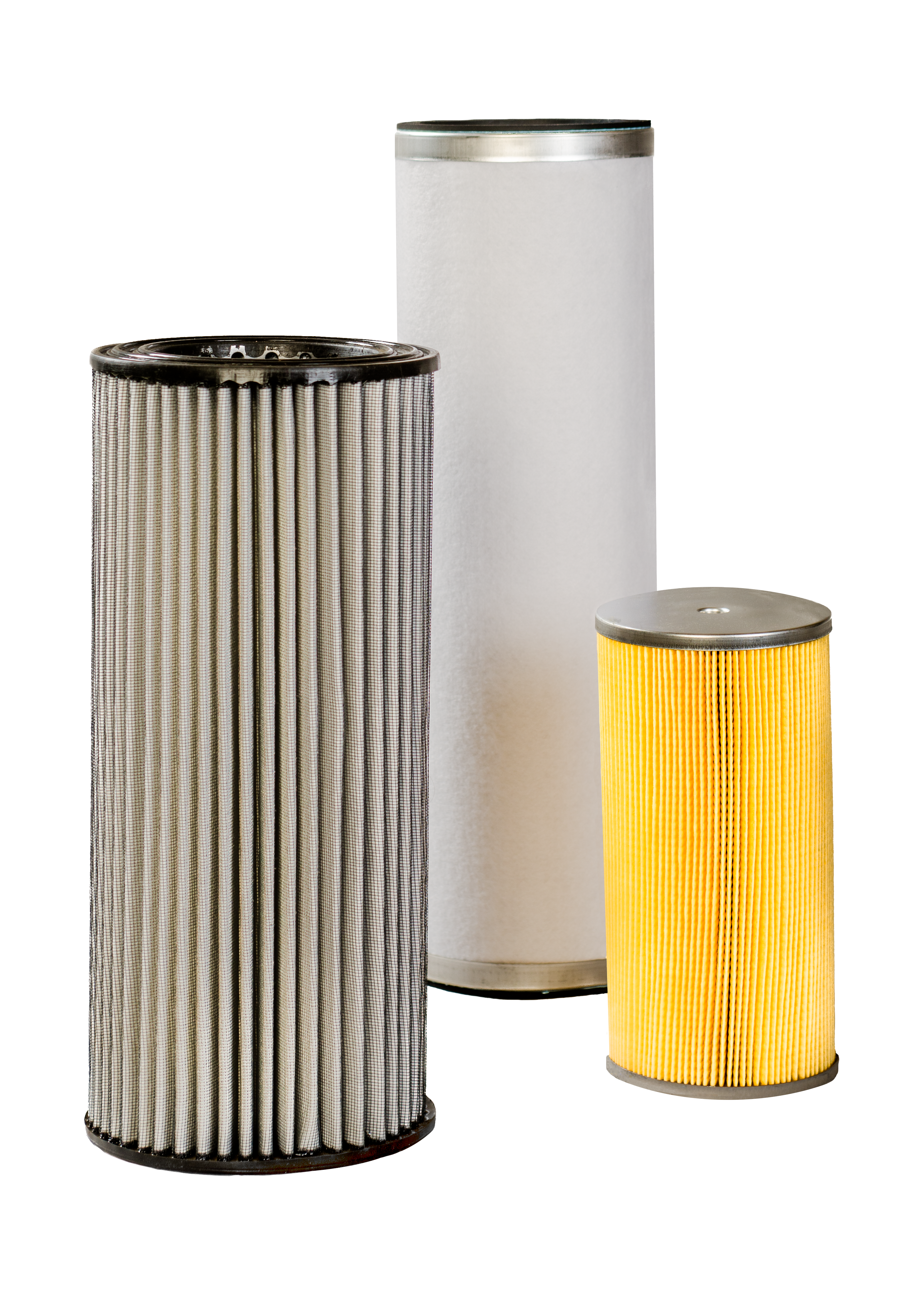

FilterFab F-Series cartridges are radially finned to remove the largest amount of contaminants possible, saving unnecessary, time-consuming filter changeouts. Our standard cartridge removes 99.9% of all particles 10 microns and larger, which exceeds the requirements of most gas equipment manufacturers. If you're interested in other micron ratings, call our engineering department at 1-800-899-6927, or contact us via a quick form.

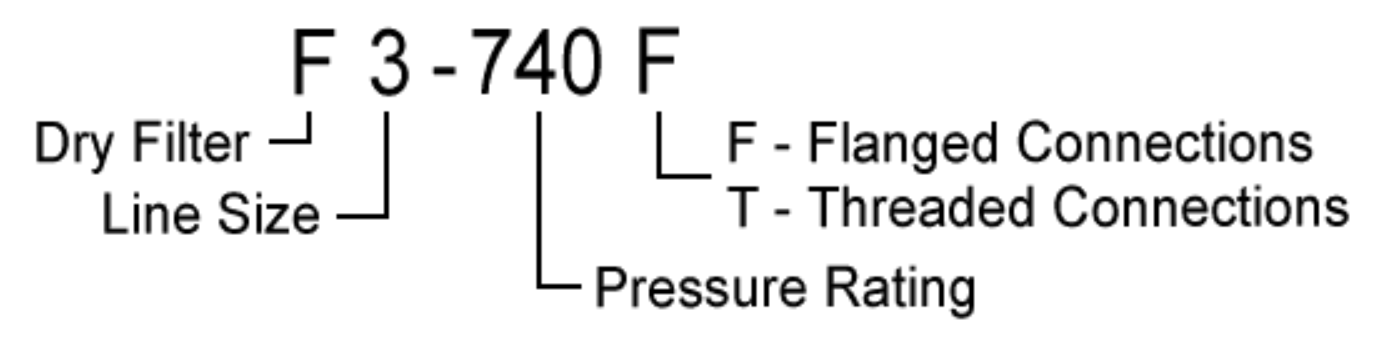

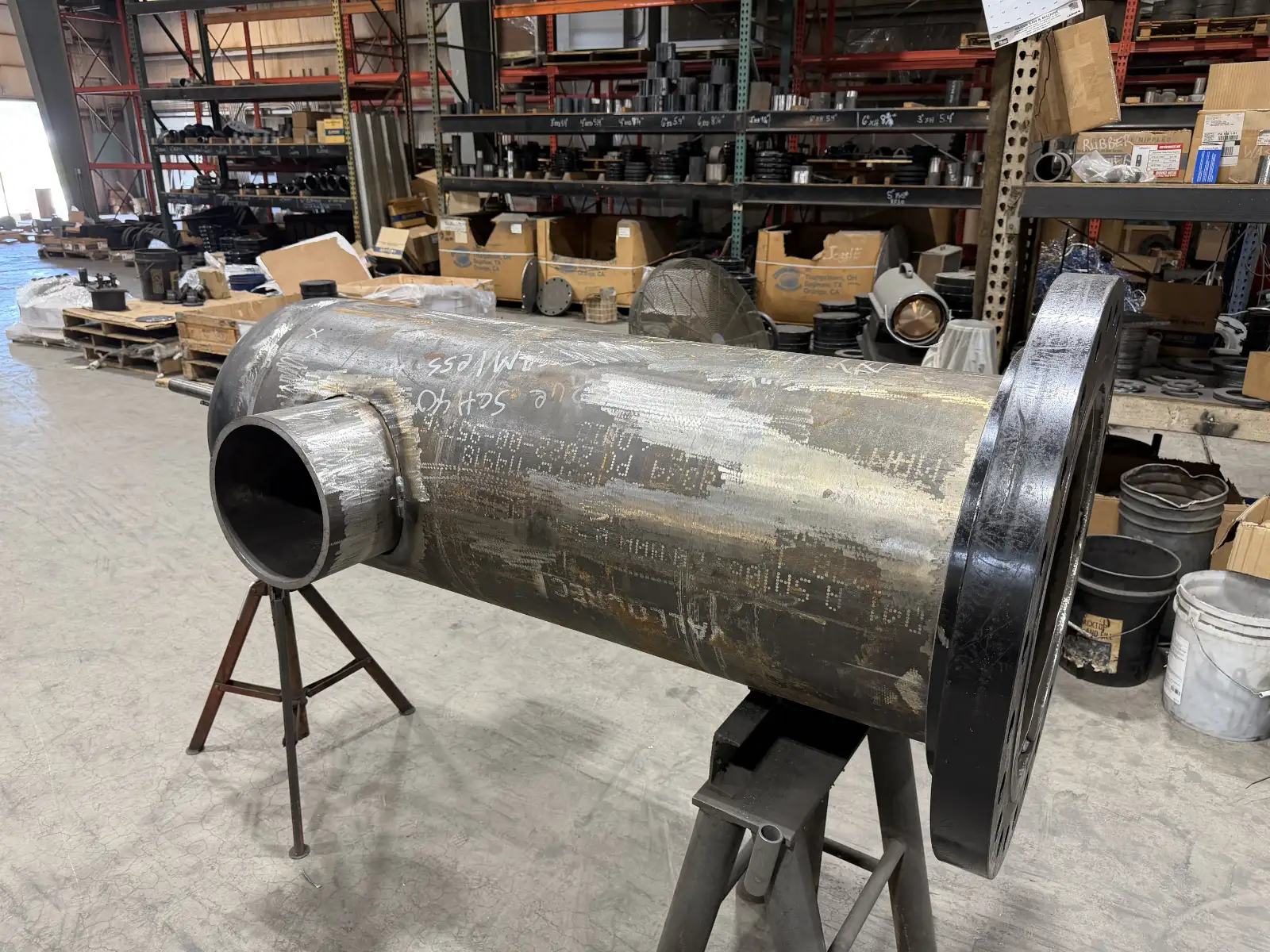

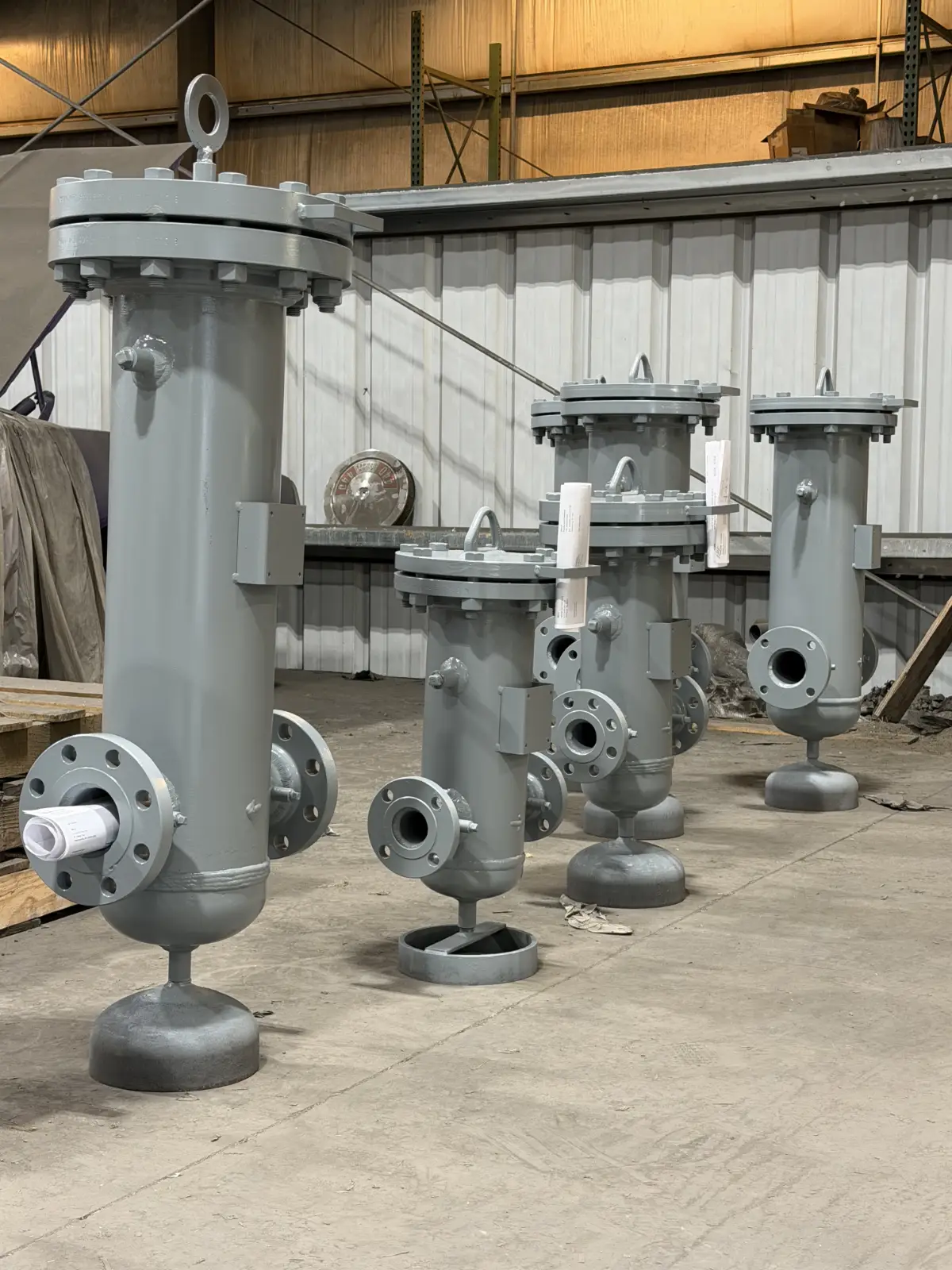

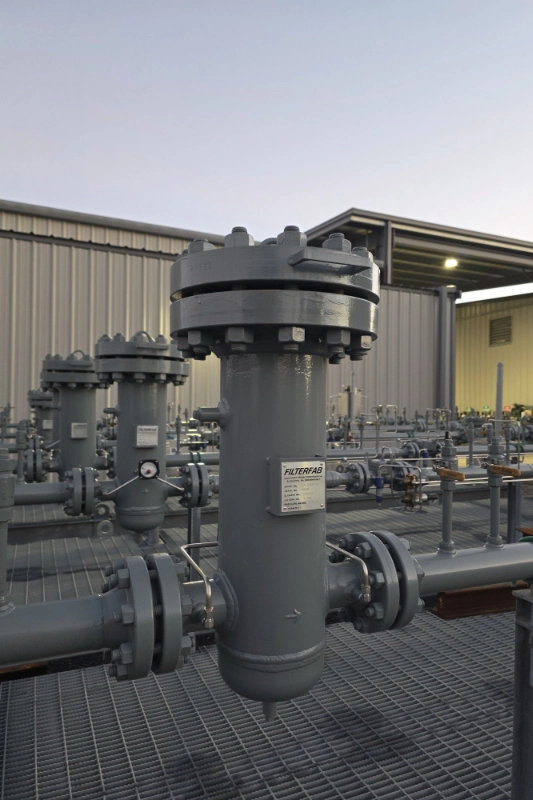

F-Series housings are manufactured to various pressure specifications: We offer a 180-psi natural gas filter, a 285-psi natural gas filter, a 740-psi natural gas filter, and a 1480-psi natural gas filter. Line connections range from 2" (inches) to 12" (inches). Consult our engineering department for other sizes.

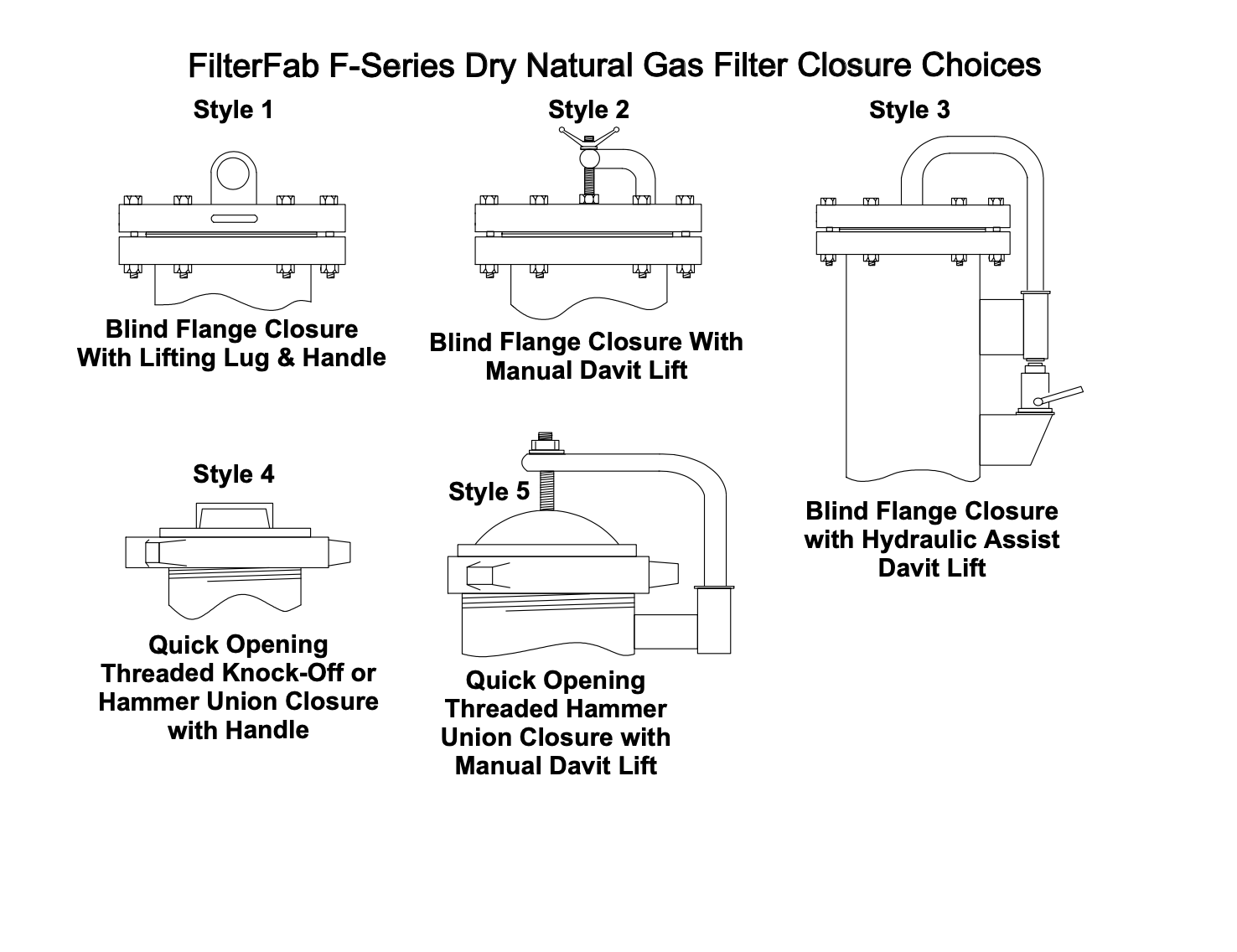

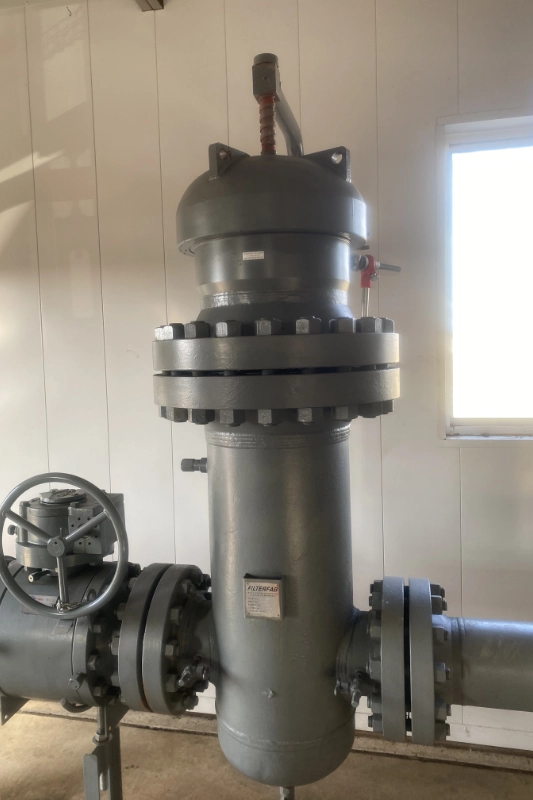

Three styles of access closures are available – a quick-opening swing bolt lid on 180 and 285 psi housings, a blind flange on all housings, and a thread-on hammer union lid on most housings. Heavy lids are equipped with a lifting davit.
Water, oil, and dirt in natural gas lines at wellheads, upstream of compressors, downstream of compressor aftercoolers, and at compressor fuel gas connections can do great damage. FilterFab's C-Series coalescing filters use a proprietary reverse-flow, radially-finned, high surface area filter cartridge unlike those used by any of our competitors. These cartridges are built with layers of borosilicate fiberglass sandwiched into layers of felted polyester media to remove 99.9% of all liquid droplets, fogs, and mists, plus all particulate matter down to 0.3-microns in size. This design is so efficient and has such a large surface area, that our housings use only one or two cartridges. Our competitors, however, may use multiples of ten or more. Therefore, changeouts are quicker and much less expensive.
Why You Should Use FilterFab C-Series Natural Gas Filters
FilterFab C-Series cartridges create a gas flow pattern that fuse the microscopic droplets together as they pass through the fine pores of the specially designed borosilicate fiberglass media layers. This action forms droplets too large to be carried further downstream, so the liquid drips from the cartridge into a holding sump, from where it can be drained manually or automatically.

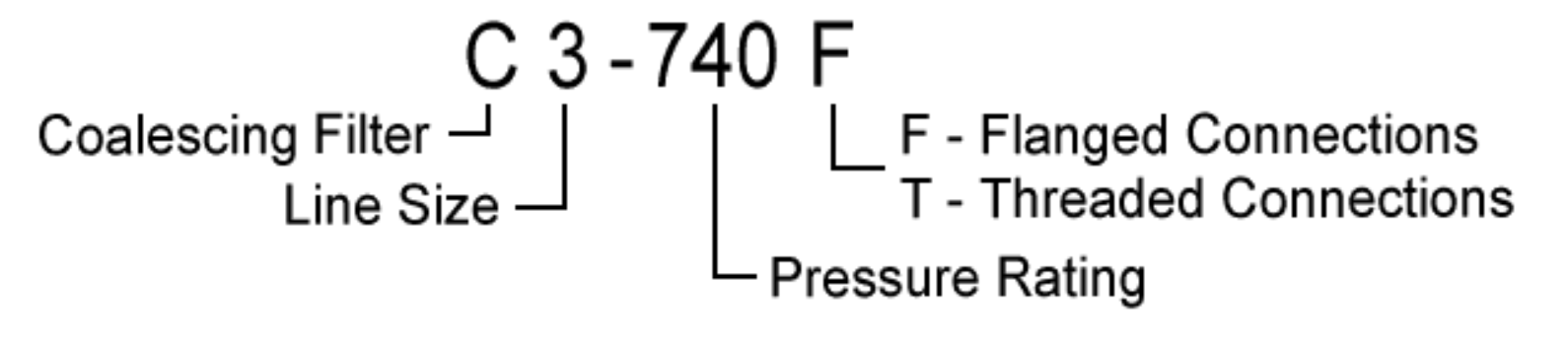

C-Series housings are manufactured to various pressure specifications. We offer a 180 psi natural gas filter, a 285 psi natural gas filter, a 740 psi natural gas filter and a 1480 psi natural gas filter. Line connections range from 2" (inches) to 12" (inches). If you need larger sizes, consult our engineering department at 1-800-899-6927, or contact us via a quick form.

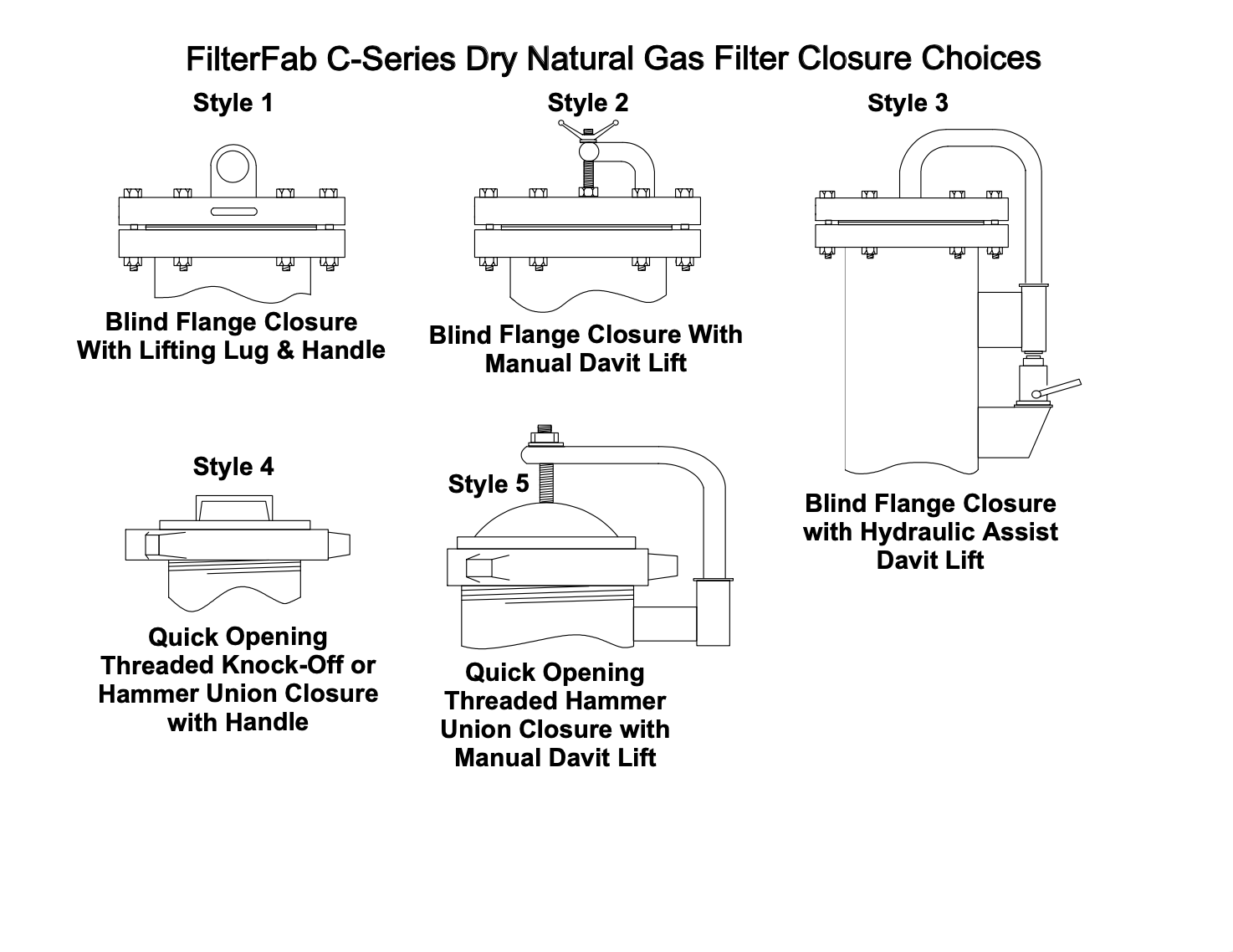

Three styles of access closure are available – a quick opening swing bolt lid on 180 and 285 psi housings, a blind flange on all housings, and a thread-on hammer union lid on most housings. Heavy lids are equipped with a lifting davit.
